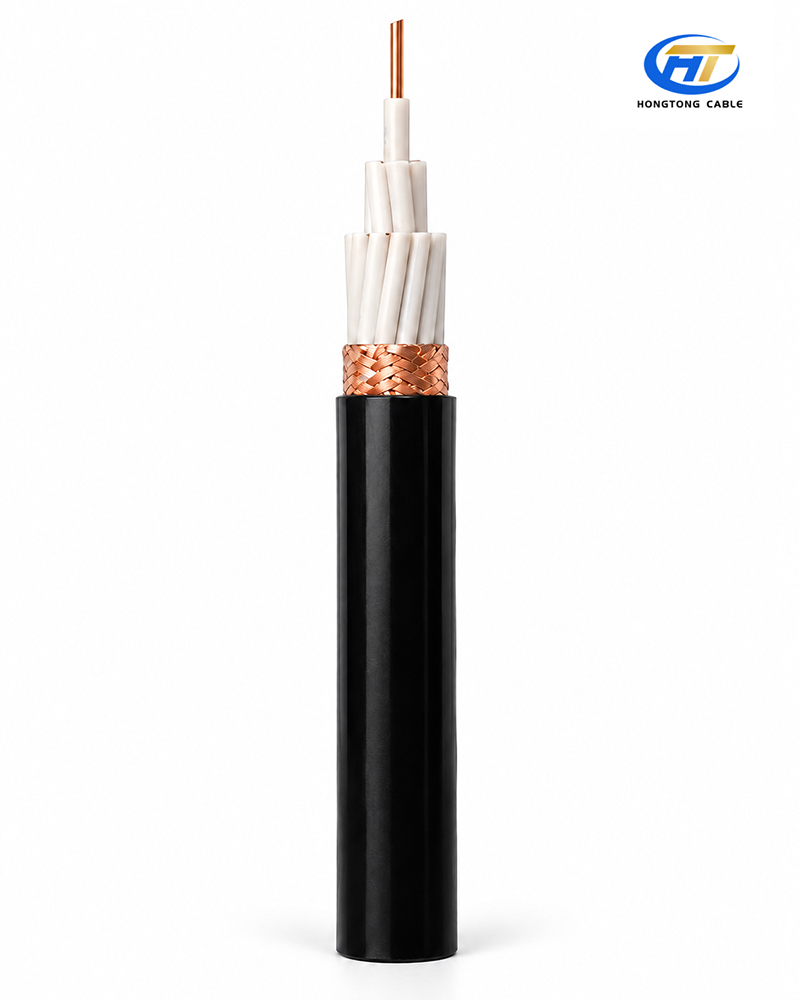

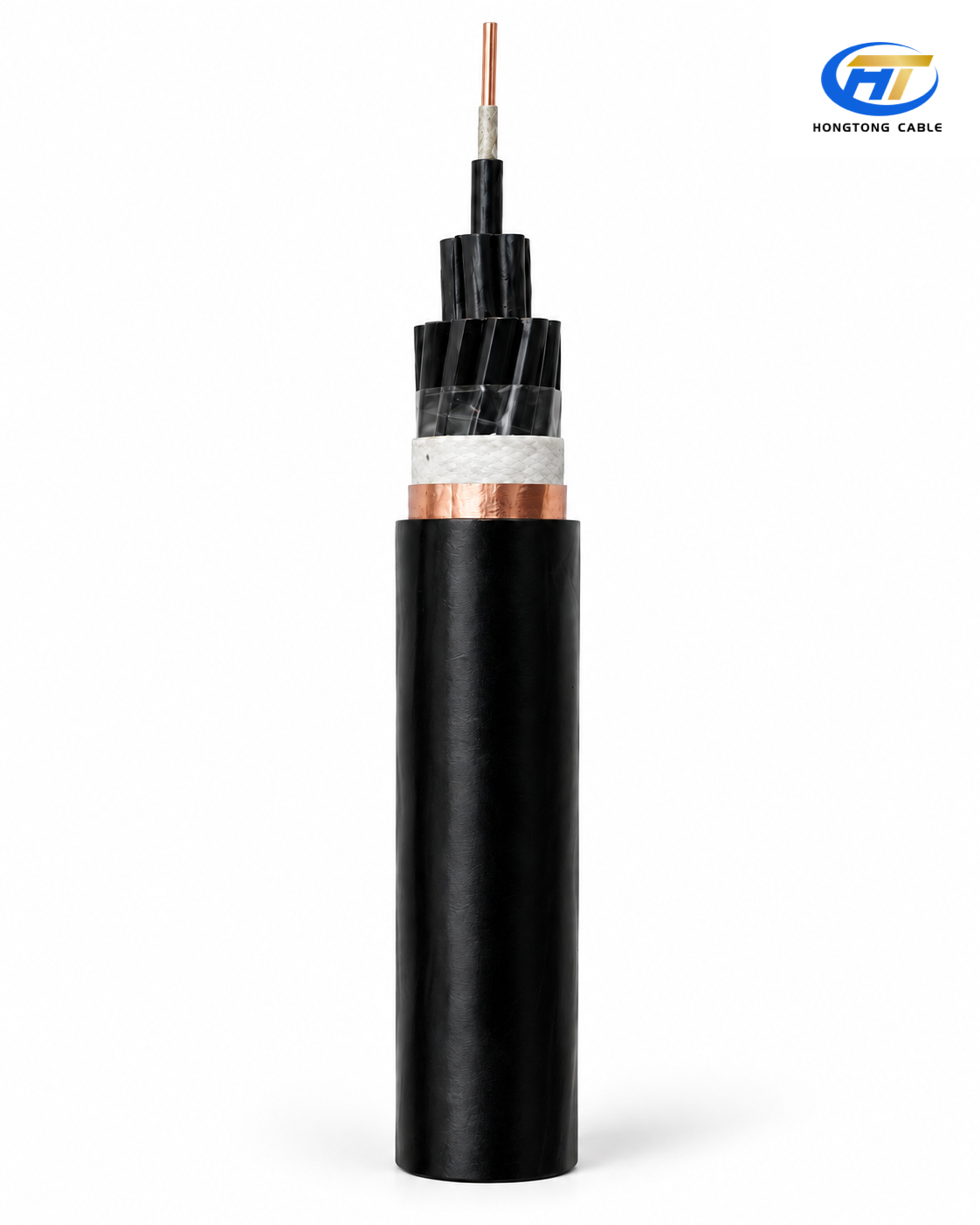

XLPE Insulated Control Cable

Cu / XLPE / PET / Cu Braid (≥80%) / PVC

XLPE insulated control cables, featuring a 90°C continuous operating temperature, high dielectric strength and low-smoke zero-halogen environmental performance, are widely used in control circuits requiring enhanced cable performance, including high-temperature and high-load installations, densely occupied areas, new-energy systems and other demanding operating environments.

450/750 V
Rated Voltage

-20°C to +90°C
Operating Temperature

Copper Braid
Coverage ≥80%

GB/T 9330-2020
Standard

DETAIL TECHNICAL DATA GET A QUOTE

Application

★

Advantages

✓ Excellent Electrical Insulation: 30–40 kV/mm, approx. 2× PVC · tanδ ≤ 0.001, about 95% lower than PVC

✓ LSZH Safety: Light Transmittance ≥60% · No HCl or other corrosive toxic gases

✓ High Mechanical Strength: 18–25 MPa Tensile Strength · Abrasion, Impact & Environmental Stress-Crack Resistant

✓ Strong Environmental Resistance: Acid/Alkali & Oil Resistant · pH 1–13 · QUV 3000 h

Technical Data

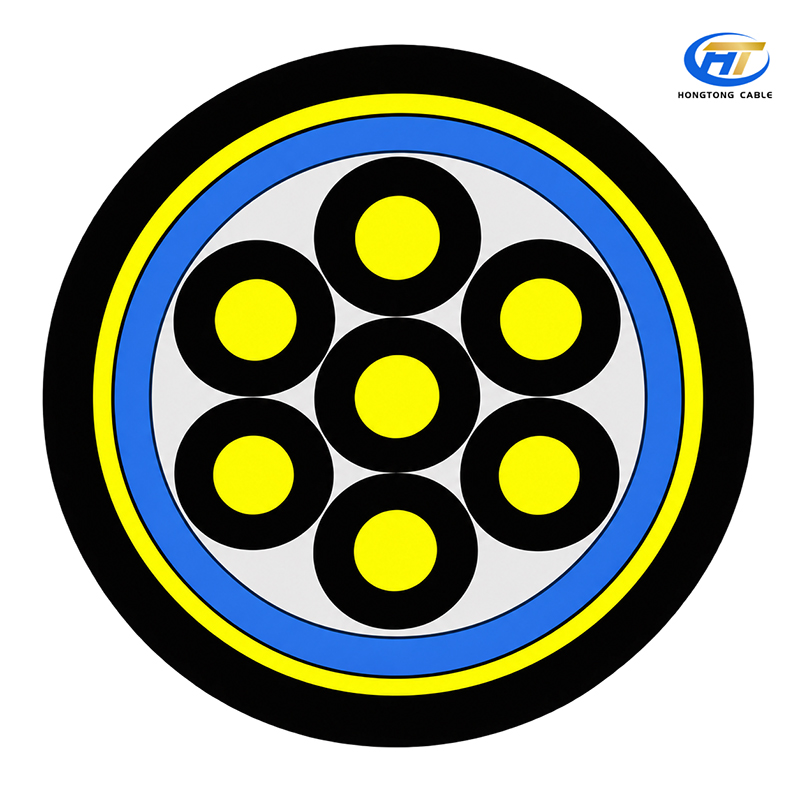

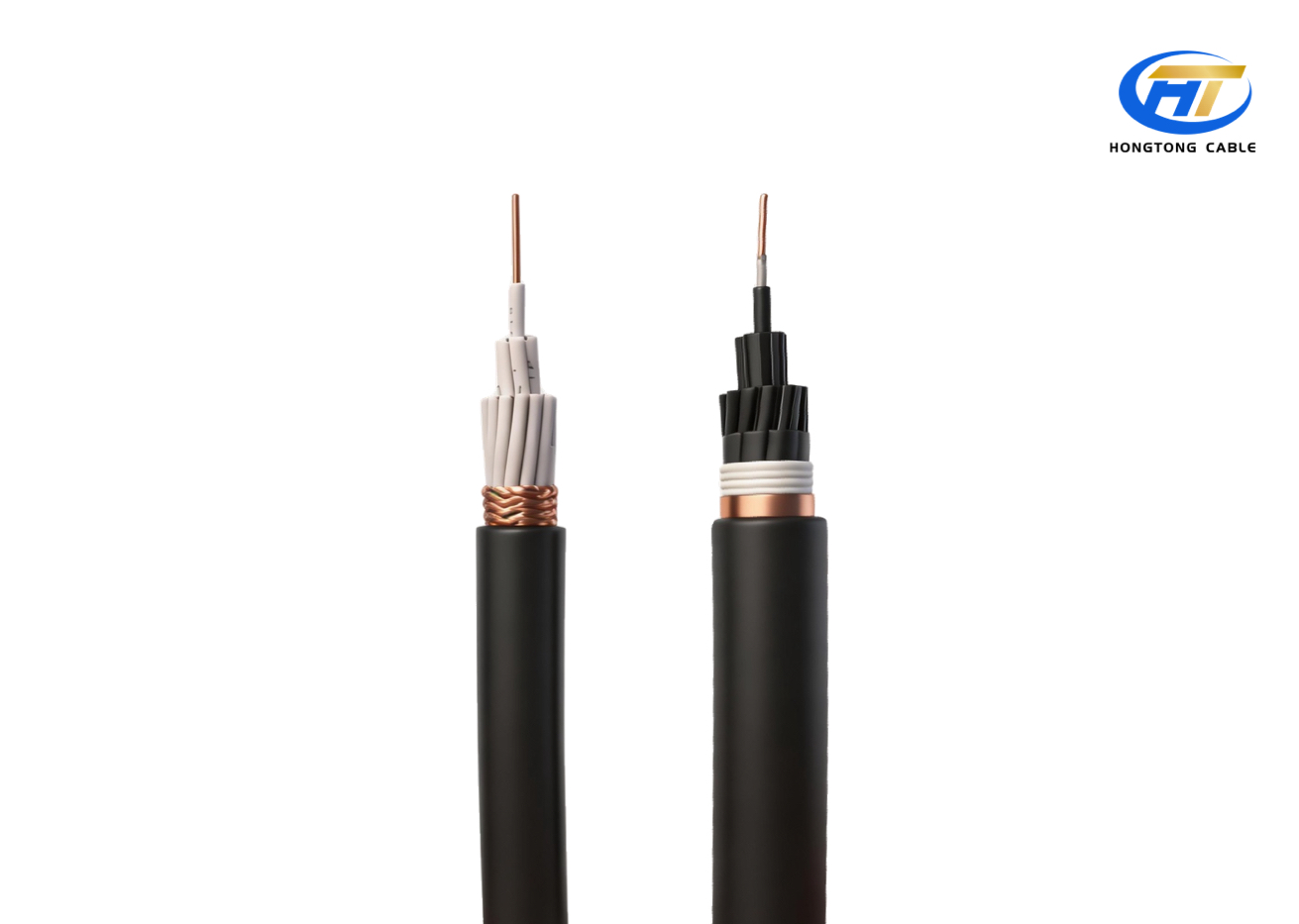

Cable Construction

Conductor	Oxygen-Free Copper Conductor
Insulation	Cross-Linked Polyethylene (XLPE)
Wrapping Tape	Polyester Tape
Braided Shield	Oxygen-Free Copper Wire Braid, Coverage ≥80%
Sheath	Polyvinyl Chloride (PVC)
Sheath Color	Black

Technical Characteristics

Operating Temperature	-20°C to +90°C
Flame Retardancy	IEC 60332-1
Flame Test	IEC 60332-1
Standard	GB/T 9330-2020

Electrical Characteristics

Rated Voltage	450/750 V
Test Voltage	3000 V / 5 min
Minimum Bending Radius	6–12 × cable diameter
Insulation Resistance	≥500 MΩ·km

Dimensions

No. of Cores × Nominal Cross-Section n × mm²	Nominal Insulation Thickness mm	Nominal Sheath Thickness mm	Nominal Overall Diameter mm	Weight kg/km
2×1	0.6	1.2	8.3	90
3×1	0.6	1.2	8.7	105
4×1	0.6	1.2	9.3	124
5×1	0.6	1.2	10.0	143
2×1.5	0.6	1.2	8.8	105
3×1.5	0.6	1.2	9.2	126
4×1.5	0.6	1.2	9.9	150
5×1.5	0.6	1.2	10.7	1075
7×1.5	0.6	1.2	11.5	217
12×1.5	0.6	1.5	15.5	378
14×1.5	0.6	1.5	16.1	421
19×1.5	0.6	1.5	17.7	528
24×1.5	0.6	1.7	20.1	680
37×1.5	0.6	1.7	23.4	939
2×2.5	0.7	1.2	10.0	139
3×2.5	0.7	1.2	10.5	170
4×2.5	0.7	1.2	11.4	206
5×2.5	0.7	1.2	12.3	244
7×2.5	0.7	1.5	132.9	326
12×2.5	0.7	1.5	17.9	536
14×2.5	0.7	1.5	18.7	601
19×2.5	0.7	1.7	21.0	783
24×2.5	0.7	1.7	24.3	984
37×2.5	0.7	1.7	27.8	1414
