POWER CABLE

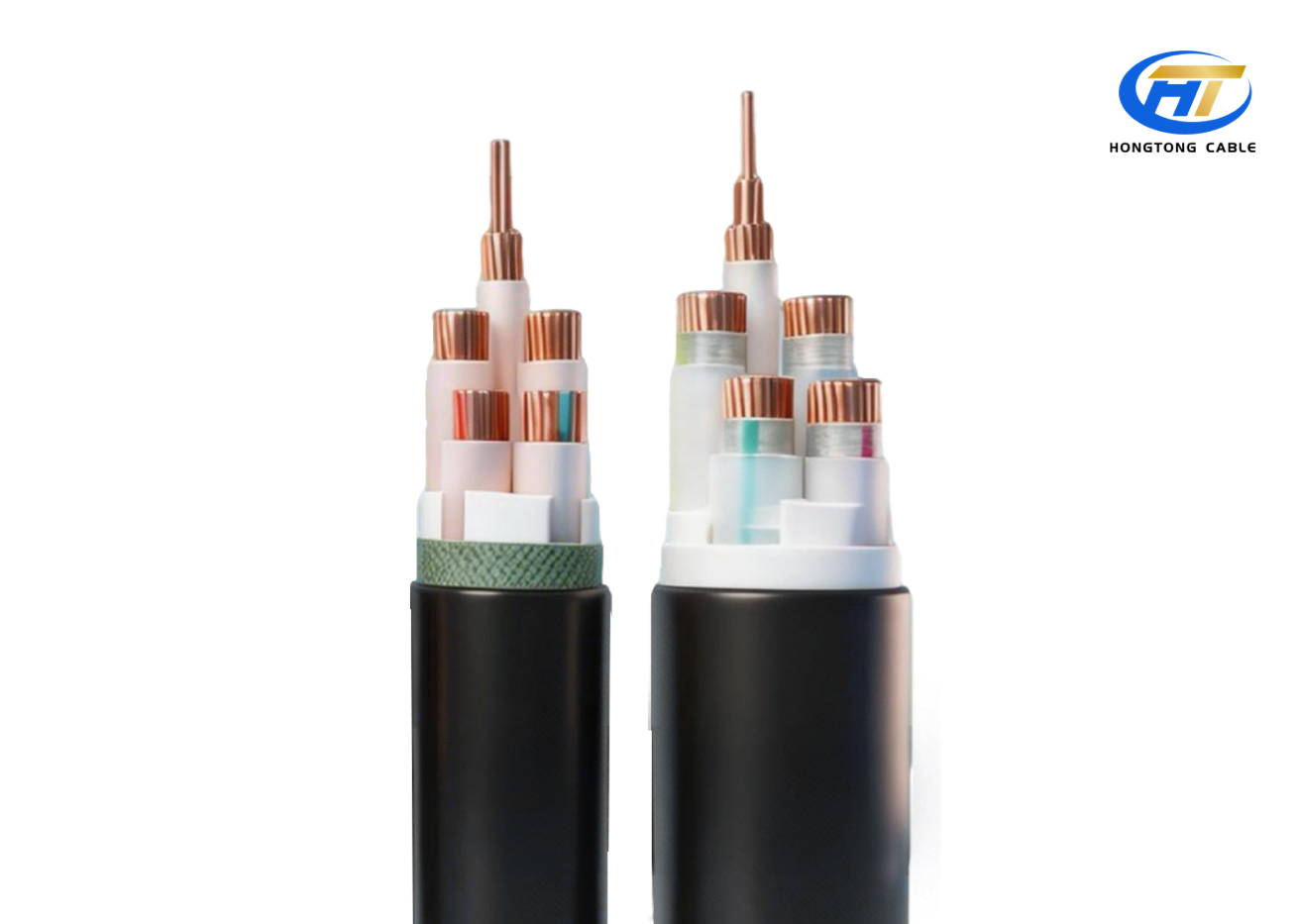

Up to 35 kV XLPE Insulated Power Cable

26/35 kV · Cu/Al / XLPE / PVC

Designed for medium-voltage power transmission and distribution systems up to 35 kV. Widely used in utility networks, industrial facilities, renewable energy projects, and other applications requiring safe and reliable transmission and distribution of high-capacity electrical power.

26/35 kV
Rated Voltage

IEC 60228
Cu / Al Conductor

90°C Continuous
Operation

30+ Year
Service Life

DETAIL TECHNICAL DATA GET A QUOTE

Application

★

Advantages

✓ IEC 60228 Cu / Al Conductor

✓ XLPE Three-Layer Screened Insulation

✓ 90°C Continuous Operation · 30+ Years

✓ Steel Tape / Steel Wire Armour Options

✓ Special Sheath Options for Harsh Environments

✓ Ageing & Electrical-Tree Resistance

Technical Data

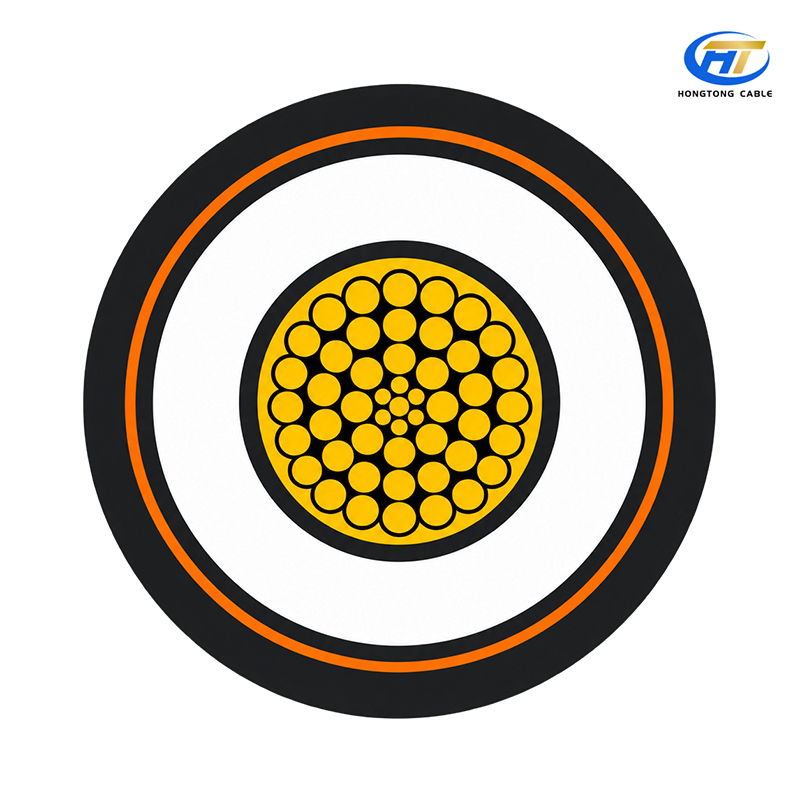

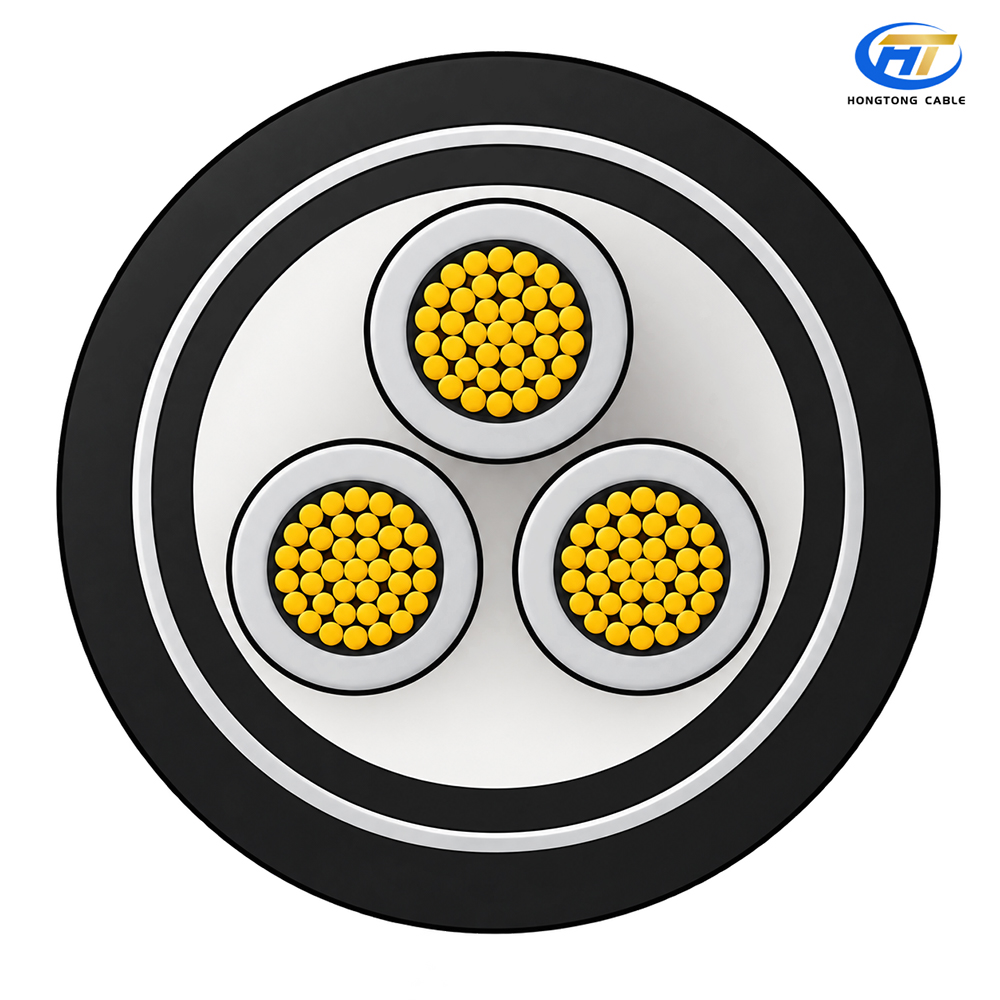

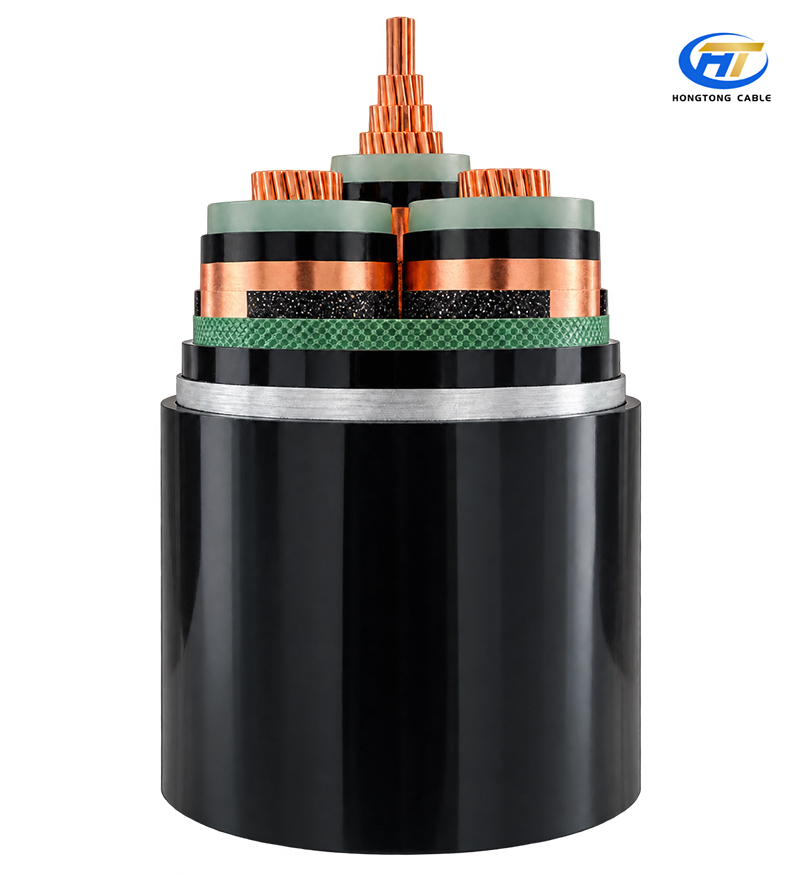

Cable Construction

Conductor	Copper or aluminum conductor, IEC 60228 Class 1 or Class 2
Conductor Screen	Semi-conductive screening compound
Insulation	Cross-linked Polyethylene (XLPE)
Inner / Outer Sheath	Polyvinyl Chloride (PVC) / PVC; outer sheath color: Black

Technical Characteristics

Operating Temperature	-20°C to +90°C
Short-Circuit Temperature	250°C
Flame-Retardant Test	Complies with IEC 60332-1
Standards	IEC 60502 · GB/T 12706.3-2020

Electrical Characteristics

Rated Voltage	26/35 kV
AC Test Voltage (5 min)	91 kV
Impulse Test Voltage	200 kV
20°C Conductor Resistance	IEC 60228 / GB/T 3956 compliant

Dimensions

Cross Section n × mm²	Conductor Diameter mm	Overall Diameter mm	Current-Carrying Capacity at 40°C [A]	Conductor Resistance at 20°C Ω/km	Weight kg/km
3×35	7	83	150	0.524	7721
3×50	8.2	86.0	180	0.387	8476.9
3×70	10	89.9	220	0.268	9548.4
3×95	11.6	93.8	265	0.193	10734.8
3×120	13	97.2	310	0.153	11866
3×150	14.6	100.9	350	0.124	13188.5
3×185	16.2	104.7	400	0.0991	14646.1
3×240	18.4	110	465	0.0754	16868.1
3×300	20.6	115.2	535	0.0601	19259.2
3×400	23.5	122.1	615	0.047	22809.6
