PVC Insulated Control Cable
PVC Control Cable Image 1

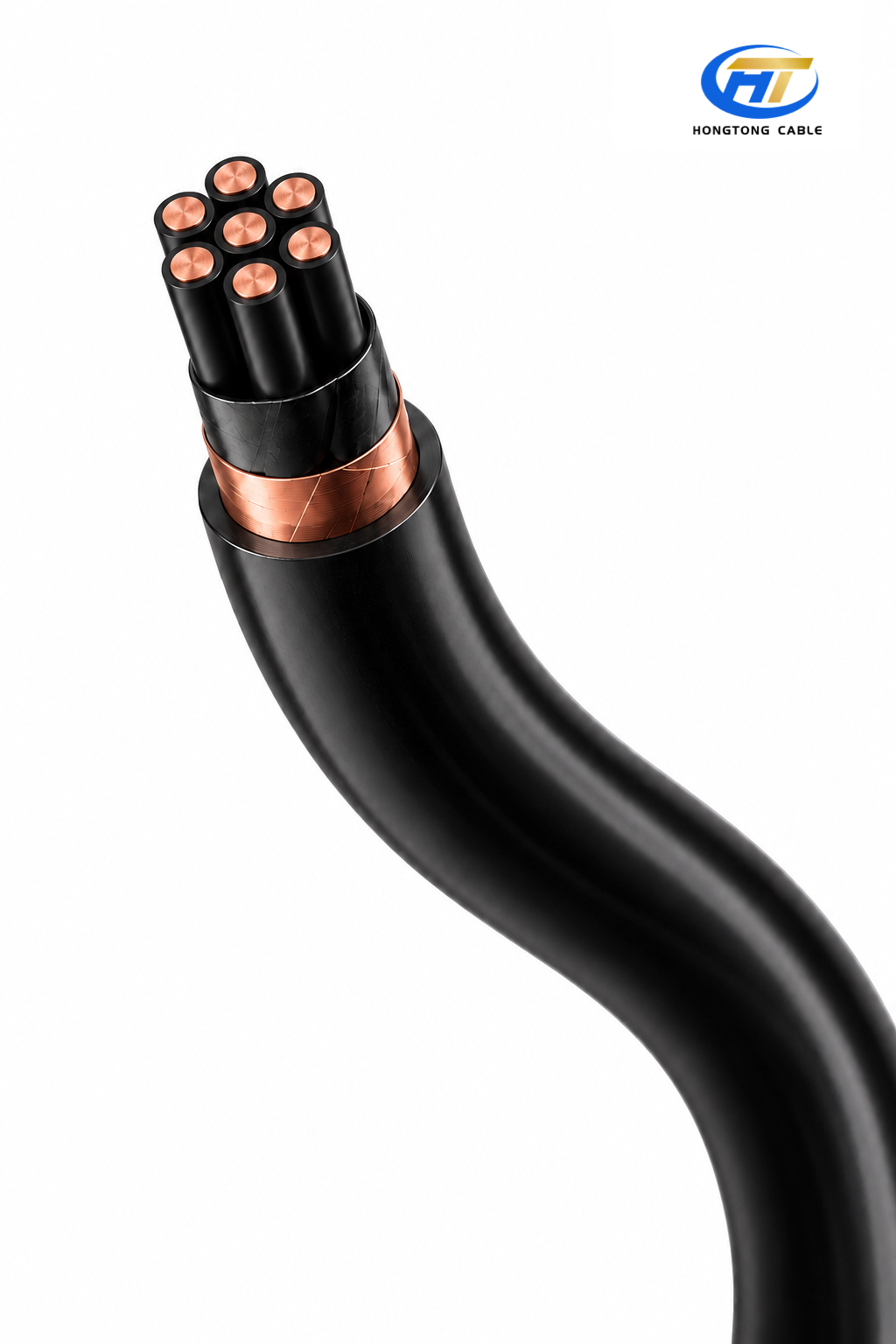

PVC Control Cable Image 2

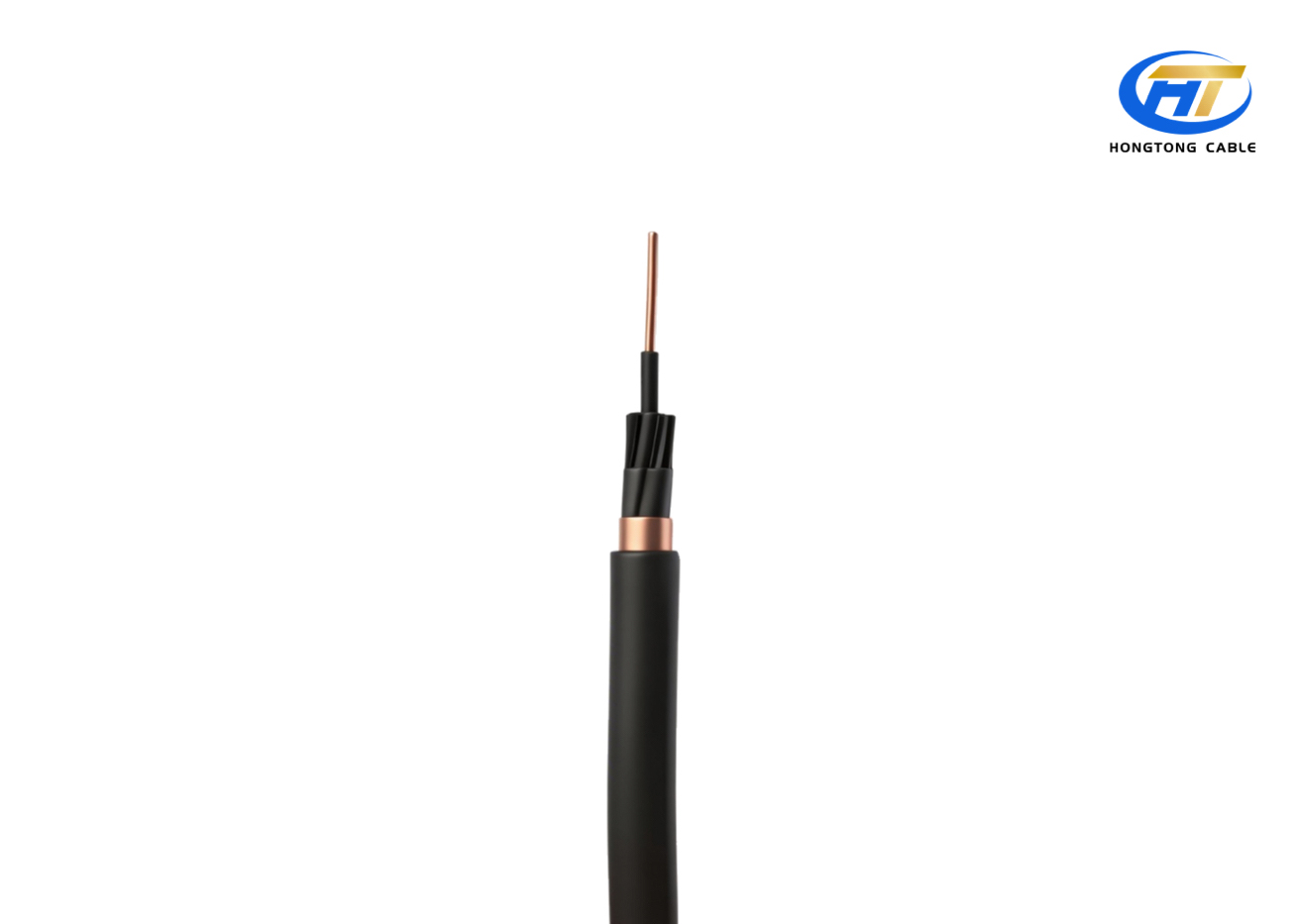

PVC Control Cable Image 3

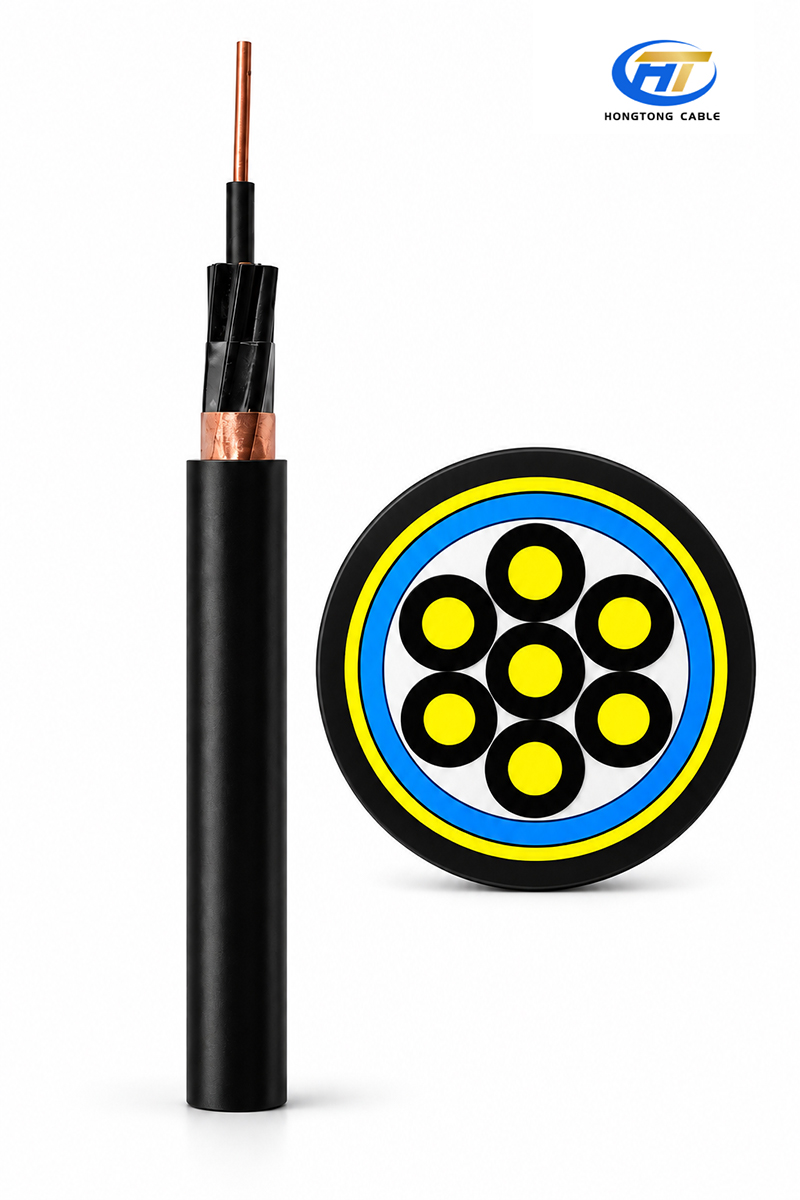

PVC Control Cable Image 4
CONTROL CABLE

PVC Insulated Control Cable

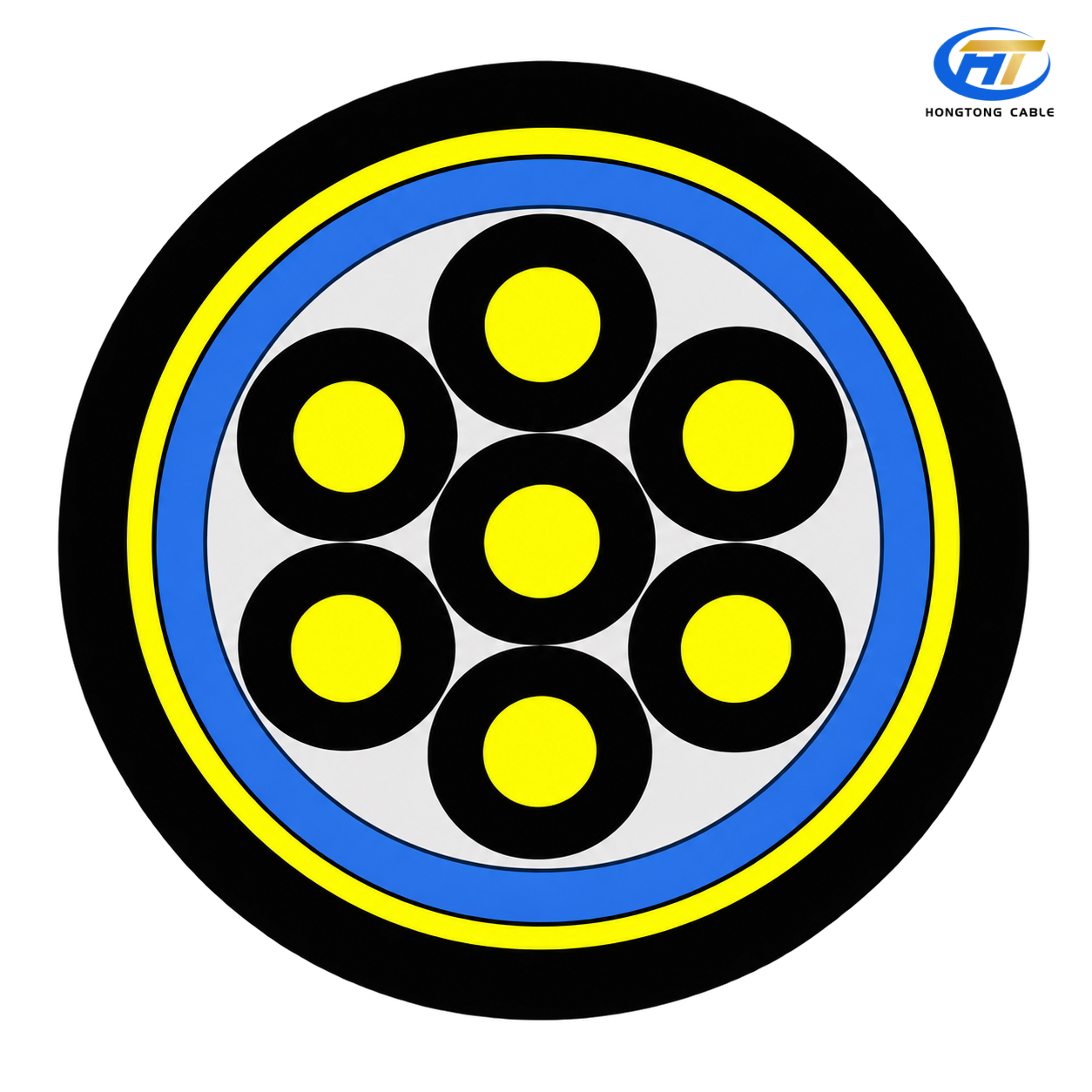

Cu / PVC / PET / Cu Tape (≥15% overlap) / PVC

PVC insulated control cables are widely used for signal transmission and equipment control in industrial plants, power systems, building services, and specialized industrial and mining applications. They offer good resistance to oils and mild corrosive media, flame-retardant self-extinguishing performance, and cost-effective operation.

450/750 V
Rated Voltage
-20°C to +70°C
Operating Temperature
Copper Tape
Overlap ≥15%
GB/T 9330-2020
Standard
                   A

Application

PVC insulated control cables are widely used for signal transmission and equipment control in industrial plants, power systems, building services, and specialized industrial and mining applications. They offer good resistance to oils and mild corrosive media, flame-retardant self-extinguishing performance, and cost-effective operation.
                   ★

Advantages

✓ Stable Insulation: PVC insulation · 3 kV / 5 min withstand voltage
✓ Flame Retardant & Self-Extinguishing: IEC 60332-1 compliant
✓ Environmental Resistance: Acid/alkali · Oil · Moisture · Mildew
✓ Cost-Effective · Short Lead Time · Low Maintenance
✓ Service life can reach 25 years under normal operating conditions

Technical Data

Cable Construction
ConductorOxygen-Free Copper Conductor
InsulationPolyvinyl Chloride (PVC)
Wrapping TapePolyester Tape
Copper Tape ShieldOxygen-Free Copper Tape, overlap ≥15%
SheathPolyvinyl Chloride (PVC)
Sheath ColorBlack
Technical Characteristics
Operating Temperature-20°C to +70°C
Flame RetardancyCompliant with IEC 60332-1
Flame TestIEC 60332-1
StandardGB/T 9330-2020
Electrical Characteristics
Rated Voltage450/750 V
Test Voltage3 kV / 5 min
Minimum Bending Radius6–12 × OD
Insulation Resistance≥5 MΩ·km

Dimensions

Cross Section
n × mm²		Nominal Insulation Thickness
mm		Nominal Sheath Thickness
mm		Approx. Overall Diameter
mm		Weight
kg/km
2×10.61.28.079
3×10.61.28.496
4×10.61.29.1115
5×10.61.29.6135
2×1.50.71.28.9101
3×1.50.71.29.3124
4×1.50.71.210.1151
5×1.50.71.210.9178
7×1.50.71.211.7225
12×1.50.71.515.7384
14×1.50.71.516.4432
19×1.50.71.518.1551
24×1.50.71.721.3716
37×1.50.71.724.21011
2×2.50.81.210.1135
3×2.50.81.210.6170
4×2.50.81.211.5209
5×2.50.81.212.1250
7×2.50.81.514.1339
12×2.50.81.518.1548
14×2.50.81.519.0620
19×2.50.81.721.4819
24×2.50.81.724.91037
37×2.50.81.728.31485
On mobile devices, swipe horizontally to view complete technical parameters.
